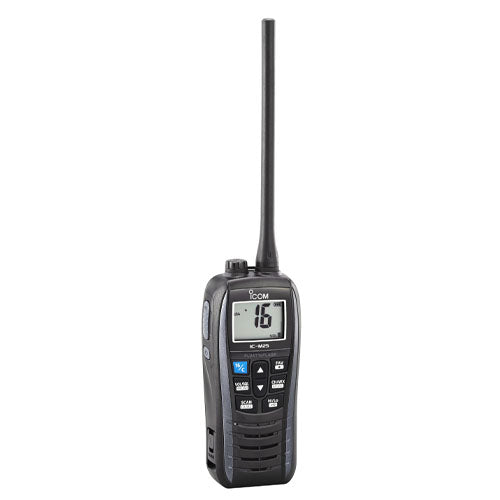

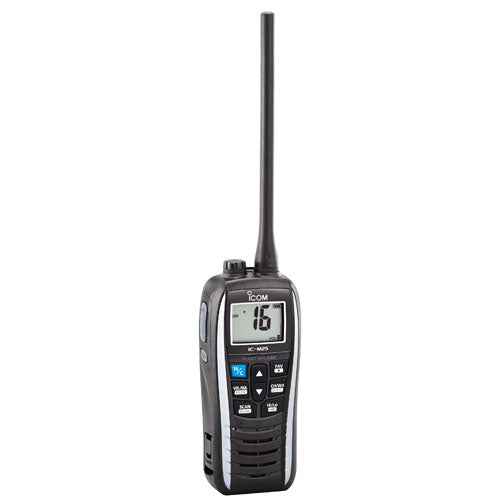

Icom M25 Handheld VHF Radio
Icom M25 Handheld VHF Radio
Three color options plus great features and style are the traits of Icom M25 Handheld VHF Radio, which floats and flashes when dropped into the water. Sporting a slim design, this handheld has the lightest body in the market for a floating VHF radio at just 7.8oz. New for an Icom marine handheld, this radio requires a USB connector for convenient charging from a variety of electronic devices!
Float & Flash
Icom pioneered the floating VHF marine radio and others followed. The IC-M25 has a flashing light feature that activates when the radio hits water, even if the power is off! If you drop this floating radio overboard, it's easier to find than ever, day or night. The IC-M25’s LCD is 30% larger than its predecessor, the IC-M24 and shows clearly large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.
USB Charging
A standard USB connector (Micro-B type) is used for charging the IC-M25. Compatible Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25. The built-in 1500mAh lithium-ion battery allows 11 hours (approx.) of long operation*. * Typical operation with Tx (Hi): Rx: standby=5:5:90. The optional waterproof speaker-microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist. The radio floats even when the HM-213 is attached. The IC-M25 provides a powerful 550mW (typical) audio output and received voice can be heard loud and clear.
Features
- IPX7 waterproof construction (1m depth of water for 30 minutes)
- 4-step battery life indicator
- Weather channel with weather alert
- Dual/Tri-watch functions
- Instant access to Ch 16 or programmable call channel
- Favorite channel function
- Monitor function opens noise squelch
- Auto scan function
- LCD auto backlighting
- AquaQuake™ draining function
General
| Frequency Range | TX: 156.025–157.425MHz RX: 156.050–163.275MHz |
| Usable channels | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) |
| Current drain (at 3.7V DC) |
Tx (High): 2.3A Rx (at AF max.): 300mA/200mA typ. |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50Ω |
| Dimensions (W×H×D) (Projections not included) |
56.6x134.2x30.5mm 2.23x5.28x1.2in |
| Weight (approx.) | 220g; 7.8oz (With FA-SC59V and MB-133) |
Transmitter
| Output power (Hi/Mid/Low) | 5W (High),1W (Low) |
| Max. frequency deviation | ±5.0kHz |
| Frequency stability | ±10ppm |
| Spurious emissions | -68dBc typical |
| Adjacent channel power | 70dB |
| Audio harmonic distortion | 10% (at 60% dev.) |
| Residual modulation | 40dB |
Receiver
| Sensitivity (at 12dB SINAD) | 0.25µV typical |
| Squelch sensitivity | 0.25µV typ. (at threshold) |
| Adjacent Channel Selectivity | 70dB typical |
| Spurious response | 70dB typical |
| Intermodulation Rejection | 70dB typical |
| Hum and noise ratio | 40dB typical |
| Audio output power (at 10% distortion, 8 Ω) |
Internal SP: 550mW typ. (12Ω load) External SP: 300mW typ. (4Ω load) |
| Ingress Protection Standard | IPX7 (Waterproof protection) |
- Icom M25
- Belt Clip
- Antenna
- Hand Strap
- Instruction Manual
