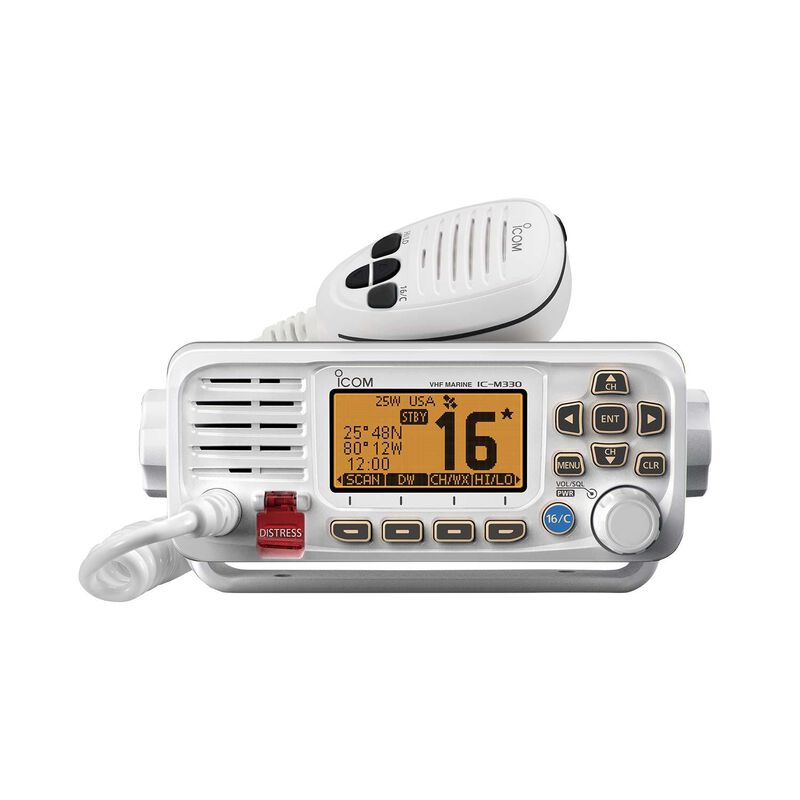

Icom M330G Fixed Mount Marine VHF Radio
Compact Icom M330G Fixed Marine VHF Radio with GPS and External Antenna offers the same performance and features as the M324 series, but in a smaller form factor to fit in limited spaces. The cost is really affordable. The M330 series includes the AquaQuake draining feature, 25 watts of electricity, IPX7 Waterproof rating, scan and choose scan, and Icom's distinctive user interface for ease of operation.
The M330's small size makes it easy to install in boats with limited space. You can see everything clearly and without difficulty using a dot-matrix display. The directional keypad is paired with soft keys to make things easier. To make it easier to access frequently used functions with a single push, soft keys are assigned to them. It includes a GPS receiver as well as an antenna that can simply be added to the M330G.
Your location, bearing, and speed are determined using GPS, GLONASS, and SBAS antennas. This information is used to make DSC (Digital Selective Calling) calls. Use the GPS puck antenna fitted to the receiver to get the most accurate GPS and DSC.
Main Features
- Power Output (W): 25 Watts, 1 Watt
- Automatic Identification System (AIS): Without AIS
- GPS Capable: Yes
- Display Type: 2.5" diag. LCD
Additional Features
- AquaQuake draining function
- Built-in Class D DSC with a CH70 dedicated receiver
- Common NMEA interface for external GPS/NAV connection
- Tag scan and favorite channel functions
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Priority scan function
- Display and keypad backlighting
- Weather channel with weather alert
- 3-digit or 4-digit channel display selectable
- Limited 3 Year Warranty
In The Box
- M330G VHF
- External GPS antenna w/ 5 meter cable
- Power Cord
- Mounting bracket
- Owner's manual
General
Frequency Range | TX: 156.025–161.600MHz RX: 156.050–163.275MHz Ch. 70: 156.525MHz |
Usable channels | USA, CAN, INT, WX channels |
Type of emission | 16K0G3E (FM) 16KOG2B (DSC) |
Power supply requirement | 13.8V DC nominal (11.7–15.9V DC) |
Current drain (at 13.8V DC) | Tx 25W output: 5A Rx AF max.: 1A |
Operating temperature range | -20°C to +60°C; -4°F to +140°F |
Antenna Impedance | 50Ω (SO-239) |
Dimensions (W×H×D) (Projections not included) |
156.5 × 66.5 × 110.1 mm 6.2 × 2.6 × 4.3 in |
Weight (approx.) | 730g; 1.6lb |
NMEA formats |
In: RMC, GGA, GNS, GLL, VTG Out: DSC, DSE, RMC, GSA, GSV |
Transmitter
Output power (at 13.8V DC): 25W, 1W | 50W, 15W, 5W 25W, 15W, 5W |
Max. frequency deviation | ± 5 KHz |
Frequency tolerance | ±5 ppm |
Spurious emissions |
Less than –70dBc (High) Less than –56dBc (Low) |
Receiver
Sensitivity | Main: –13dBμ typ. (12dB SINAD) DSC: –5dBμ emf typ. (1% BER) |
Squelch sensitivity | Less than –10dBμ |
Adjacent channel selectivity | Main: More than 70dB DSC: More than 73dBμ emf (1% BER) |
Spurious response |
Main: More than 70dB DSC: More than 73dBμ emf (1% BER) |
Intermodulation | Main: More than 70dB DSC: More than 68dBμ emf (1% BER) |
Hum and noise | More than 40dB |
Audio output power (at 10% distortion, 4Ω load) |
4.5W typical |
Applicable IP Rating
Ingress Protection Standard
Water: IPX7 (Waterproof protection)
