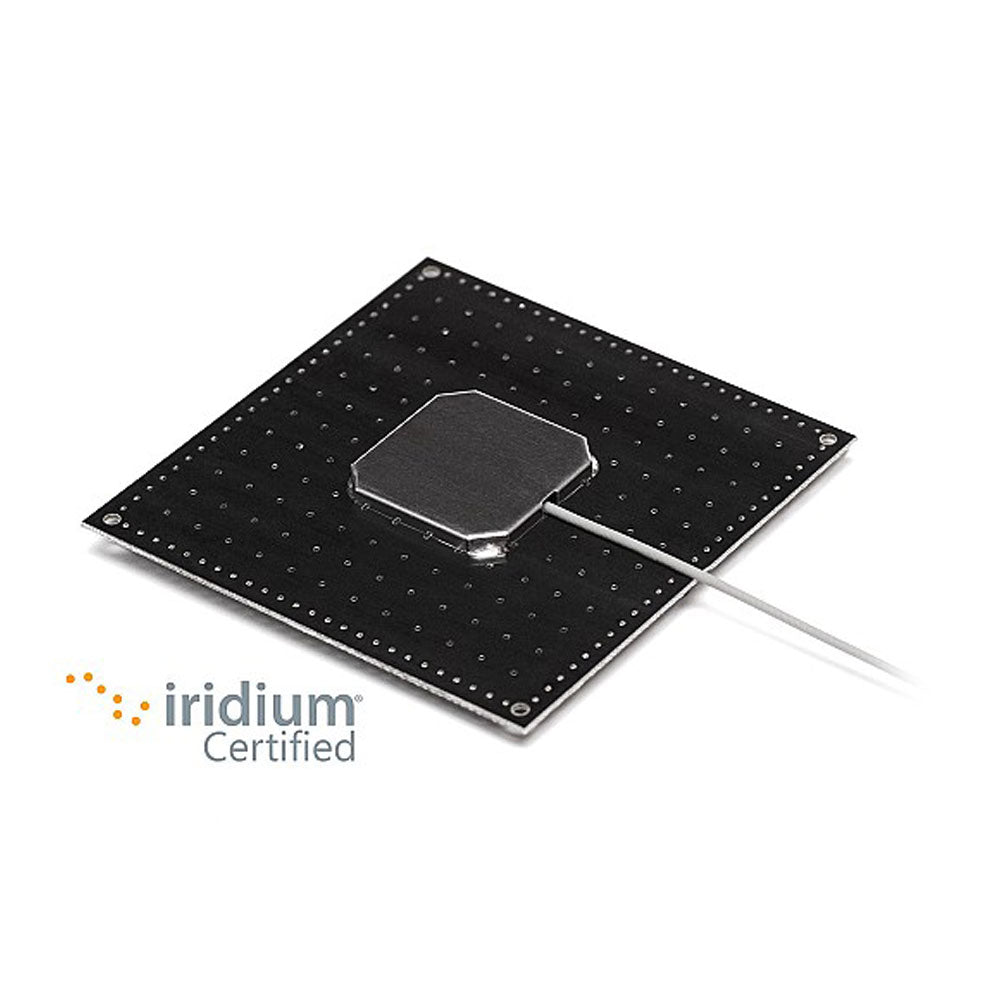

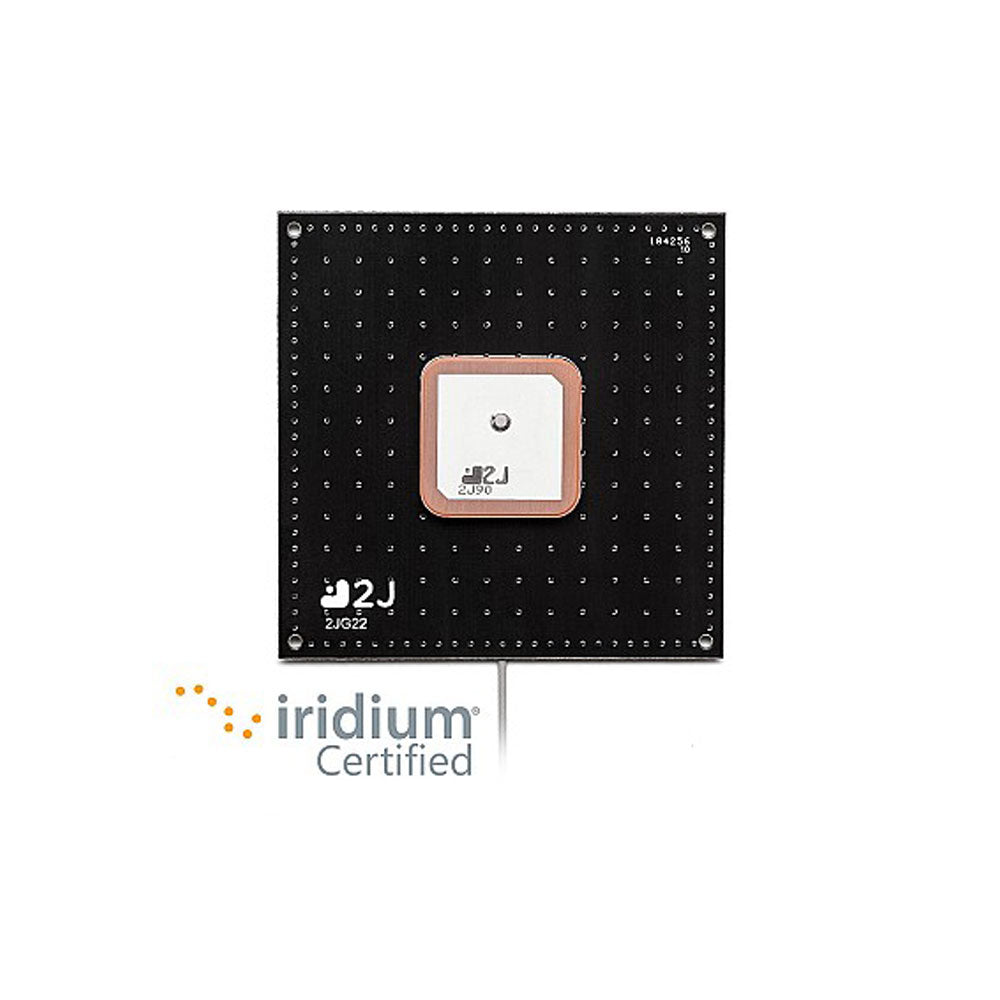

Iridium Certified Antenna 2JP0126Bz
Iridium Certified Antenna 2JP0126Bz
A high-performance internal module antenna with a screw mount, the Iridium Certified Antenna 2JP0126Bz is created exclusively for effective communication with the Iridium satellite communication system. This embedded antenna delivers the best signal quality between 1616 MHz and 1627 MHz frequencies and gives the market's most dependable worldwide connectivity for Iridium standards. When communication equipment cannot use external antennas due to ergonomic, aesthetically pleasing, or harsh climatic circumstances seen in many satellite-base applications, this internal antenna offers an alternate solution.
With an operational iridium peak gain of 4.8 dBi and a 76.6% efficiency, this antenna performs exceptionally well. 2JPO126Bz improves signal strength and rejects multi-path interference with right-hand circular polarization (RHCP).
This ground plane independent passive antenna is suggested for PCB device integration when a close proximity between the antenna and receiver is necessary. A 100 mm long 1.37 Mini-Coax cable, a standard U. FL connector, and a screw mount that allows for a safe installation on a variety of surfaces are included with the 2JPO126Bz. The antenna may be fitted with ease when difficult PCB designs are required because to its low-profile dimensions (70 x 70 x 7.1 mm), ground plane independence, and effective screw mount module. The production of this item complies with RoHS regulations and is fully Iridium certified.
Suggested Applications
- Commercial / Residential
- Emergency Communications
- Voice & Data Satellite Communications
- Automotive / Transportation
- Satellite-based telecommunications
- Navigation
- Asset tracking
Features
- Iridium Certified Antenna
- Internal Antenna
- Ground Plane Independent
- 4.8 dBi IRIDIUM Peak Gain
- High Performance
- Customizable Cable and Connector
| Mounting | Screw Mount Module |
| Dimensions (mm) | 70 × 70 × 7.1 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified |
Connection One - Iridium
| Standards | IRIDIUM |
| Frequency | 1616-1627 |
| Peak Gain (dBi) | ~4.8 |
| Efficiency (%) | ~76.6 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
